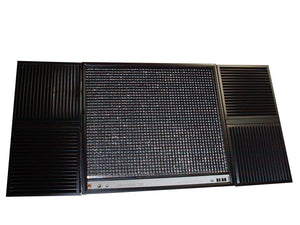

X-11Q Smokemaster® High-Efficiency Electronic Air Cleaner
Commercial Indoor Air Quality Solutions
Features the Coanda 4-way airflow pattern. Adjustable louvers allow airflow refinement.
- Totally self-contained air cleaner
- Ultimate ‘flush with ceiling’ mounted workhorse
- Requires no filter replacement
- Features industrial-rated electronic filtration cell
Superior performance and time tested design makes the Smokemaster® an excellent choice for removing tobacco smoke, pollen, mold spores, and dust.
SMOKERS LIKE CLEAN AIR TOO!
The Model X-11Q Electronic Air cleaner: Comprehensive • Inconspicuous • Economical • Quiet • Assures your indoor air quality
FEATURES & BENEFITS
• High Efficiency – Removes dust, smoke, pollen, and other particles using high-efficiency electronic collector cells.
• Inconspicuous – The attractive grille fits flush with the ceiling and is completely inconspicuous! The cabinet is hidden in the unused space above the ceiling.
• Quiet – Three-speed controller is standard and allows for quiet operation without sacrificing effectiveness. It’s ideal for private offices, rooms or other areas where noise levels may be a factor.
• Easy Installation – Special-mounting brackets simplify the installation and do not require any additional space above cabinet height of 13 5/8”.
• Coanda Airflow – Effective 360° Coanda airflow gently and evenly distributes clean air and returns dirty air to the unit. Coanda airflow destratifies air and eliminates “stuffy” air pockets.
• Economical – Permanent electronic collector cell assures low operating costs by eliminating costly filter replacements. Moreover, because collector cells offer no airflow restriction, only limited horsepower is necessary, thus reducing noise and electrical draw.
• Comprehensive – Two activated carbon filters for odor control included.
HOW THE X-11Q WORKS
Contaminant particles, such as those in tobacco smoke, receive an electrical
charge as they pass into the electronic cell and are then attracted to oppositely
charged collector plates, where they are held, similar to the way that metal
filings collect to a magnet. The air vent provides dilution control of gaseous
contaminants. Standard activated carbon filter absorbs odors and gases to
further freshen the air.
SPECIFICATIONS / MODEL X-11Q
Coverage: Up to 1,00 sq. ft.
ELECTRICAL RATING: 120V 50/60 Hz or
220V 50/60 Hz
LOW SPEED: 500 CFM / 1.9 Amps
MEDIUM SPEED: 900 CFM / 2.2 Amps
HIGH SPEED: 1100 CFM / 2.6 Amps
COLOR: White or Black
MOTOR: 1/10 Hp energy-efficient motor, fan motor vibration
DIMENSIONS: 46 3/4” L x 22 3/4” W x 13 5/8” H
(Fits 2’ x 4’ tile opening. *Power module adds 2” width above drop ceiling. Contact factory for non-drop ceiling installation information.)
WEIGHT: 83 lbs. installed 107 lbs. shipping
COLLECTION AREA: 105.8 Sq. Ft.
SORBENT MEDIA: 2 Activated Carbon Filters, 10” x 22” x .5”
AIR CLEANING EFFICIENCY: Independent lab tested to the most current, stringent standards to deliver over 98.8% efficiency on 3-micron particles at medium speed.
[For Other Voltage ratings please contact us Via Phone or Email]
Sound level (per Decibels)
High - 69 dB
Medium - 59 dB
Low - 51 dB
This product is not available for resale or installation in California.
